Square Perforated Face Diffuser

Type DFZ

The DFZ series perforated diffusers are designed to be applied in air conditioning ventillation and heating systems. They can be mounted in false ceilings.

The face design of DFZ-S4 diffuser cause a 4 way horizontal air supply with an accentuated coanda effect. Their multiple small openings provides a high level of induction rate, emitting a uniform air flow.

The DFZ series diffusers admit a flow variation of 60% keeping the air stream stable. These diffusers can be used from 2.6 up to 4 metres high and at temperature differential up to 12°C. The design of these diffusers is ideal for integration with modern ceiling constructions.

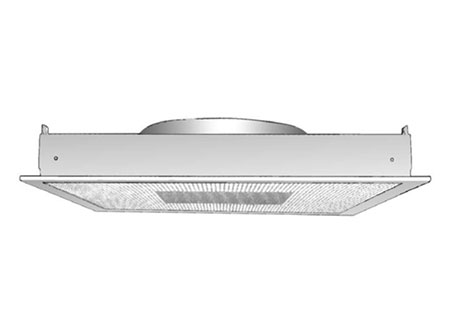

Type DFZ-S4+PLFZ/Type DFZ-R+PLFZ

EAFD1
600595569545313

Manufactured from galvanised steel.

DFZ-S4+P – Square diffuser for supply with plenum box.

DFZ-R+P – Square diffuser for extract with plenum box

DFR – Square diffuser for extract without plenum box, to replace a false ceiling tile.

P – Plenum box with an upper circular connection. It includes supports to hang from the ceiling. Made in galvanised steel.

P – Connection into the plenum box by means two screws, to hang the assembly from the ceiling with drop rods.

Polyester powder-coated in the following colours:

RAL 9006 – Silver, RAL 9010 – White,
RAL – Other colours at an additional cost.
