External Louvres

Type EL75

Type EL75 is a standard fixed blade weather louvre with built-in water turnbacks for standard supply and extract applications. The louvre is complete with integrated bird and insect mesh screen, the pitch is 75mm and the depth is 75mm. These units can be supplied with a choice of frame to suit most building applications.

These units are manufactured from HE9TF Aluminium Extrusions, and are fabricated and tig welded to provide strength and durability in use. The units are 75mm deep with a choice of border flanges.

No standard sizes are manufactured and any panel size can be created up to a maximum one piece section of 3600mmx1400mm powder coated.

Standard finish is polyester epoxy powder coating to a standard RAL reference. Alternative finishes such as Syntha Pulvin are available on request.

We have shown on this page three styles of frame; Surface; Recessed; and Hidden Fixing. Other variations and widths of frame are available upon request.

Various fixing methods have been show below and include the following; Hidden fixing straps; Cleats to rear and we also supply a range of proprietary manufactured slotted galvanised angles and straps. TEK Louvres conform to current BSIRA data of 98.4% water rejection at 13.5m/sec face velocity.

Average Face Velocity M/Second

[table id=EL75 /]

“Lorem ipsum dolor sit amet, consectetur adipiscing elit.”

– Client Name

Fixing Method

TEK External Louvres EL75 Spec2 - External Louvres - Type EL75

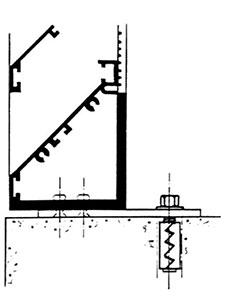

Type EL75 Recessed Frame with Fixing Strap

Fixing straps supplied pre-fixed to louvre frame. Position and fix louvre frame to the mounting surface. (Packing if required)

TEK External Louvres EL75 Spec3 - External Louvres - Type EL75

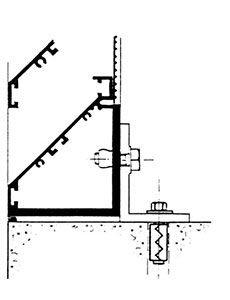

Type EL75 Demountable Fixing Recessed Frame

Fix angle cleats to rear of louvre frame and fit cleats to mounting surface.

TEK External Louvres EL75 Spec1 - External Louvres - Type EL75

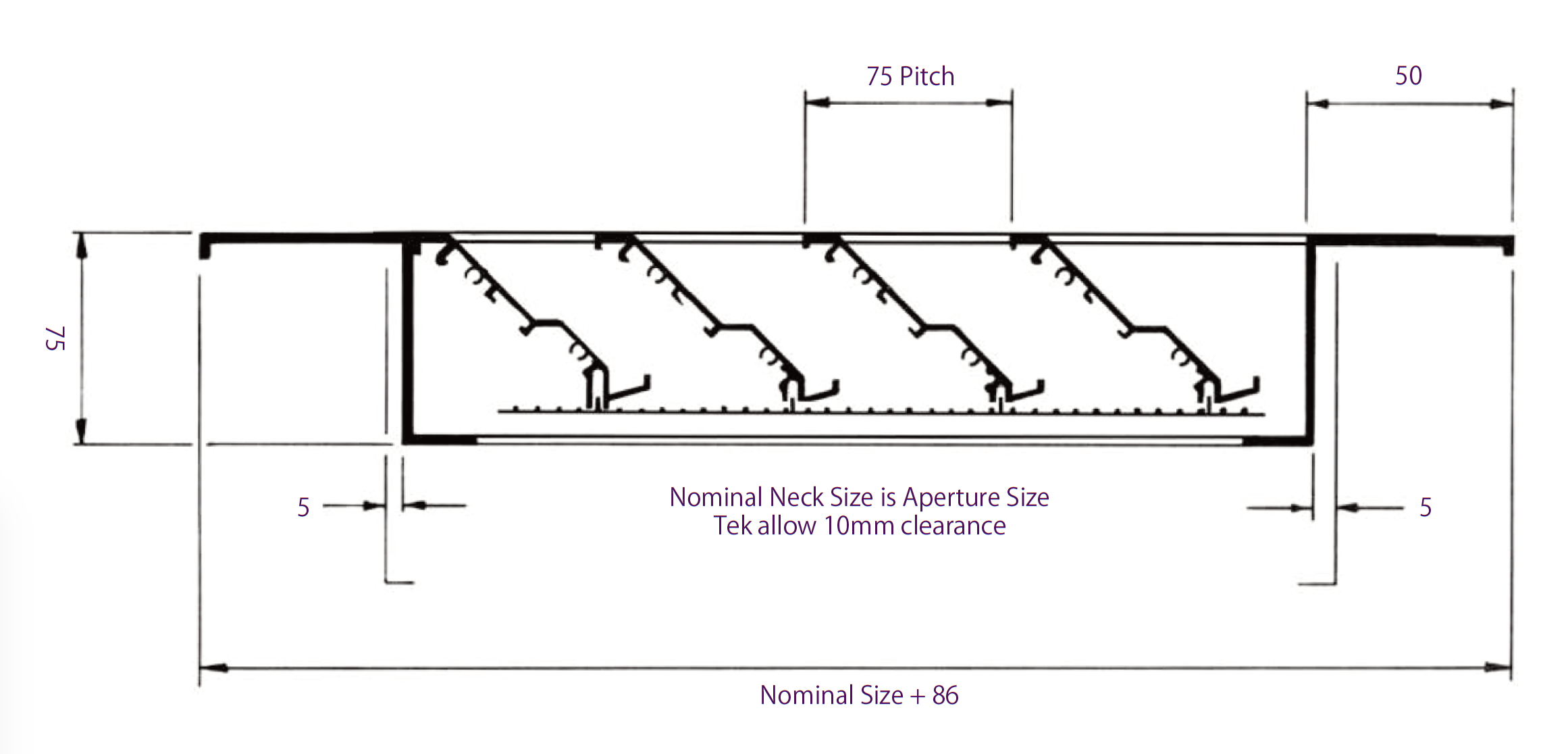

Type EL75 Surface Frame Typical Installation
