Type RME

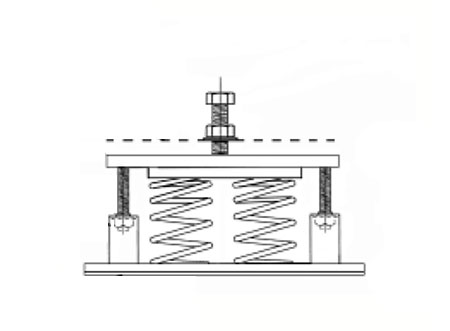

Type RME are free standing restrained mounts with external levelling. The springs are positioned between a steel bottom load plate, bonded to a neoprene stop pad and a steel top load plate. The spring is held in with two drilled and tapped steel restraints.
The supported equipment is held between the top load plate and a lock nut. The mounts may be fixed down utilising then pre‐drilled holes in the base plate. Alternatively, the neoprene pad will act as a friction pad.
Slide table to view more
| Dimensional Data mm | Load Range kg | Nom Defl mm | J | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | A | B | C | D | E | F | G | H | |||
| RME/1A/25 | 165 | 190 | 230 | 90 | 60 | 14 | 12 | 140 | 11‐500 | 25 | - |
| RME/1/25 | 190 | 220 | 250 | 90 | 70 | 14 | 20 | 188 | 97‐1091 | 25 | - |
| RME/2/25 | 330 | 370 | 410 | 130 | 70 | 14 | 20 | 190 | 193‐2182 | 25 | 70 |
| RME/1/50 | 190 | 220 | 250 | 90 | 70 | 14 | 20 | 215 | 22‐907 | 50 | - |
| RME/1/75 | 210 | 240 | 280 | 130 | 60 | 14 | 20 | 245 | 22‐907 | 75 | - |
| RME/1/100 | 330 | 358 | 408 | 200 | 60 | 14 | 20 | 410 | 45‐1361 | 100 | - |
