Type SNH

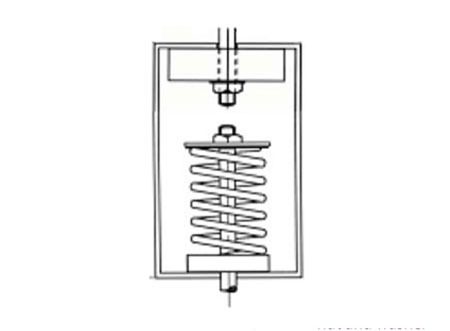

Type SNH spring hangers comprise steel springs mounted in a steel housing with a neoprene insert located in the top of the mount.
The springs are retained between steel top and bottom load plates.
The hanger rods, by others, are passed through the spring and neoprene components and held with a nut and washer
| Dimensional Data mm | Weight Range Kg | Nom Defl mm |
|||||
|---|---|---|---|---|---|---|---|
| Mount Type | A | B | C | D | E | ||
| SH/1/25/1 | 150 | 100 | 80 | - | 14 | 11‐1100 | 25 |
| SH/1/25/2 | 250 | 150 | 100 | - | 14 | 425‐2400 | 25 |
| SH/1/50/1 | 250 | 150 | 100 | 12 | 18 | 11‐454 | 50 |
| SH/1/50/2 | 350 | 150 | 100 | 16 | 18 | 455‐909 | 50 |
| SH/1/75/1 | 250 | 150 | 100 | 12 | 18 | 11‐454 | 75 |
| SH/1/75/2 | 350 | 150 | 100 | 16 | 18 | 455‐909 | 75 |
| SH/1/100/1 | 370 | 210 | 180 | 12 | 14 | 11‐299 | 100 |
| SH/1/100/2 | 400 | 235 | 250 | 16 | 20 | 300‐600 | 100 |
| SH/1/100/3 | 485 | 260 | 300 | 16 | 20 | 601‐1600 | 100 |
