TEK Displacement ADU06 1 - Rectangular Air Distribution Unit - Type ADU06

Rectangular Air Distribution Unit

Type ADU06

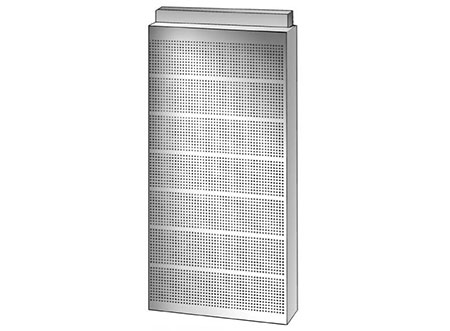

Type ADU06 is a rectangular air distribution unit for displacement ventilation. The armature has a rectangular duct connection.

The unit is fitted with diffusion nozzles which make it possible to change the geometry of the near zone. The unit is maintenance free and there is no risk of clogging.

Dimensions

[table id=19 /]

Accessories

Duct flashing and plinth.

Application

For industrial use, laboratories, data-processing centres, assembly premises, offices etc.

Mounting

  • Floor mounting against wall.
  • Duct connection from above or below.

Sound Level LA dB(A)

The sound level is specified at room damping of 4dB, corresponding to the damping in a room constant of 10 m2 SABINE measured in the reverberation field.

Full Specification
