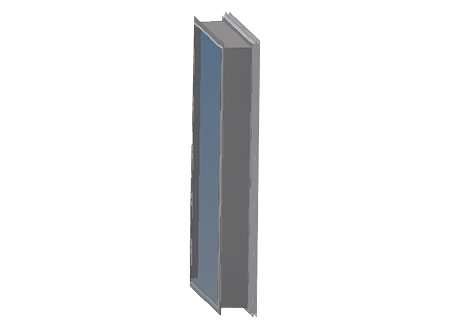

TEK natural ventilation wall vent

TEK Acoustic wall vents have been installed extensively throughout the UK. They help ensure buildings comply to the latest building regulations including Part O (overheating).

They provide natural ventilation to classrooms, laboratories, music rooms, gymnasiums, hospitals and commercial buildings.

Available in any size and to suit installation into glazing, brick or block work, our unique insulated one piece frame provides a weather seal and prevents cold bridging.

The unit has a two section case to ease installation and comprises of:

  • External decorative panel if required
  • Class A weather louvre with birdmesh or insect mesh
  • Filter
  • Our new high performance insulated and thermally broken damper
  • A choice of motor driven or hand operation
  • Insulated decorative case with one piece raised glazing bead to any size to match all window manufacturers
  • In line attenuation from 15-50dba, independently tested and verified
  • Roomside hinged or removable smooth finger proof grille to a range of designs
  • Easy clean access for maintenance with security lock.
  • Heating coil option

Our units are specifically designed to your project and to meet your requirements.

With ‘U’ values tested and verified to be 1w/m²k.

Full CD and CE tested and independently tested for water rejection.

These units can be combined with a NVHR unit or fan boost to corridor or passive stack.

Finish in both standard RAL colours or anodised to match your requirements.
