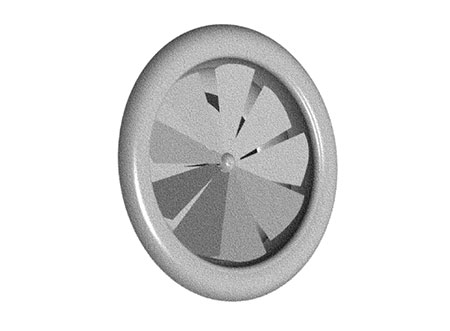

TEK Diffuser AXP 1 - Swirl Diffuser - AXP
Swirl Diffuser - Type AXP
TEK Diffuser AXP 2 - Swirl Diffuser - AXP
Swirl Diffuser//Type AX6

Swirl Diffuser

Type AXPS & Type AXPT

The AXP series of fixed blade diffusers are designed to be applied in air conditioning and ventilation systems, where a mounting height diffuser of more than four metres is desired, obtaining a high induction index and therefore a resulting stratification.

The ability of the vanes to be moved make it possible for the graduation of the air distribution to be set for either cold or hot air and discharged either horizontally or in a cone fashion. Diffusers are set for heights of up to three metres with a temperature differential of up to 10°C.

Type AXPS Sizes

[table id=37 /]

Specification & Construction

Manufactured from HE9TF extruded aluminium.

Sizes

Standard sizes start at 300mm x 300mm and increase in size up to 1200mm2.

Finish

Polyester powder-coated in the following colours:

RAL 9010 – White,

RAL – Other colours at an additional cost.

Fixing

Through frame into fascia or secret fixing through the sides into the plenum box.

Classification

The shape of the diffuser can be round or square into a 595 or square plate to provide a tile replacement.

Material

Diffuser made from spun aluminium and blades from fabricated aluminium. All diffusers are provided with a seal on the back of the frame in order that the perimeter in contact with the ceiling is airtight.

Plenum

Plenum with circular adaptors. It includes supports to hang from the ceiling. Made in galvanised steel. The plenums can be supplied with a damper.

Optionally, the plenums can be insulated with foam which has a coefficient of thermic conductivity of 0.04w/mk. Foam complies with fire reaction specifications and is Class ‘O’.

Fastening Systems

PM – Fixing with a crossbar by means of a central screw.

DIRECT – Connection into a metal duct.

Finishes

Polyester powder-coated in the following colours:

RAL 9010 – White,

RAL – Other colours at an additional cost.

Full Specification
